Nand Advanced Technologies Pvt. Ltd.

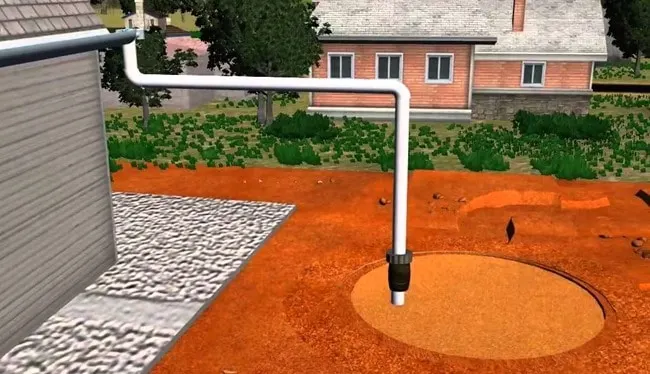

High-Efficiency Rainwater Recharge Pit Systems
Heavy-duty aquifer replenishment pits, sub-surface percolation chambers, and modular stormwater recharge systems engineered for industrial complexes, commercial estates, residential townships, and public infrastructure.
Consult Recharge Expert
Stormwater & Sub-Surface Recharge Pit Systems
Engineered for maximum aquifer replenishment, filtration efficiency, fast water percolation, and structural durability.
Precast RCC Ring Recharge Pits
Heavy-duty perforated RCC ring structures for deep soil percolation and high-volume runoff injection.
Modular Polypropylene Eco-Crates
High void space modular matrix systems offering ultra-fast water absorption and heavy traffic load handling.
Integrated Silt & Debris Desilting Chambers
Advanced pre-filtration chambers to remove suspended silt, leaves, and sand before entering the recharge pit.
Dual Recharge Borehole Shafts
Deep aquifer recharge shafts integrated with percolation pits to bypass hard clay and impervious rock strata.
Geotextile Media Encased Recharge Pit
Non-woven geotextile membrane lining surrounding aggregate beds to eliminate soil ingress and long-term clogging.
CGWA Compliant Groundwater Recharge
Turnkey rainwater harvesting recharge systems designed in strict accordance with CGWA norms and statutory standards.
Recharge Pit Sizing & Siting Matrix
Select the optimum recharge pit dimensions based on catchment area, soil infiltration rate, and peak monsoon runoff intensity.
| Pit Dimension / System Type | Catchment Area Coverage | Recommended Application | Filter & Media Structure | Load Bearing Capacity |
|---|---|---|---|---|
| 1.5m x 1.5m Recharge Pit | Up to 500 Sq. Ft. | Small Residential & Outbuildings | Dual Gravel & Coarse Sand Layer | Light Foot Traffic (Pedestrian) |
| 2.5m x 2.5m Recharge Pit | 500 - 2,000 Sq. Ft. | Villas, Commercial Offices & Warehouses | Desilting Trap + Geotextile Lining | 5 to 10 Ton Load Rating |
| 3.5m x 3.5m Recharge Pit | 2,000 - 6,000 Sq. Ft. | Factories & Educational Campuses | Perforated RCC Rings + Multi-Layer Media | 20 Ton Heavy Vehicle Grade |
| Modular Eco-Crate Recharge Bank | 6,000 - 15,000 Sq. Ft. | Industrial Estates & Shopping Malls | 95% Void Modular Matrix + Geo-Filter | 40 Ton Heavy Transport Load |
| Deep Recharge Borehole Array | 15,000+ Sq. Ft. Large Premises | Power Plants, Mining Sites & Townships | Deep Aquifer Recharge Shaft + Desilter | Heavy Industrial Custom Grid |
Sectors & Facilities We Serve
Delivering engineered rainwater recharge pit systems tailored to meet statutory groundwater recharge policies and environmental norms.
Manufacturing Plants & Warehouses
Efficiently capturing high-volume roof runoff and recharging localized groundwater tables.
Residential Townships & Housing
Preventing localized waterlogging and restoring water table levels across large residential areas.
Commercial Malls & IT Parks
Sub-surface percolation pits installed beneath driveways and parking lots for efficient land utilization.
Educational Institutions & Campuses
Eco-friendly, gravity-fed groundwater recharge pits covering vast institutional grounds.
Highways & Infrastructure Depots
Managing heavy monsoon stormwater runoff along highways, bus corridors, and railway zones.
Government & Infrastructure Projects
Fulfilling mandated Central Ground Water Authority (CGWA) guidelines for eco-building certifications.
